Hot-selling HDG Overhead Water Storage Tank Assembled Large Square Modular Panel Price Pressed Steel Elevated Water Tank

Short Description:

Elevated Water Supply Tank To increase the water pressure and save ground space, some projects require elevated water tank with tower stand. All kinds of water tanks can be used as elevated water tank.

Min. Order: 1 Cubic Meter

Size: Customized

Shipping: Support Sea fright

Send email to us

Product Detail

Product Tags

We’ve got a really efficient group to deal with inquiries from prospects. Our purpose is “100% customer fulfillment by our product excellent, price & our group service” and enjoy a superb track record amid clientele. With many factories, we can easily deliver a wide selection of Hot-selling HDG Overhead Water Storage Tank Assembled Large Square Modular Panel Price Pressed Steel Elevated Water Tank, We have now a big inventory to fulfill our customer’s calls for and needs.
We’ve got a really efficient group to deal with inquiries from prospects. Our purpose is “100% customer fulfillment by our product excellent, price & our group service” and enjoy a superb track record amid clientele. With many factories, we can easily deliver a wide selection of China Water Storage Tank and Water Container, After years’ creating and developing, with the advantages of trained qualified talents and rich marketing experience, outstanding achievements were gradually made. We get good reputation from the customers due to our good products and solutions quality and fine after-sale service. We sincerely wish to create a more prosperous and flourishing future together with all the friends home and abroad!

1.Main steel frame; 2.With fence around tower; 3.Platform with walk-way; 4.Ladder with safety cage;

mmexport1122
mmexport11223

The water pressure created by filling the tank seals the joints preventing leakage in other type tanks, water pressure can open the joints breaking the seal, and allowing the stored water to leak out.

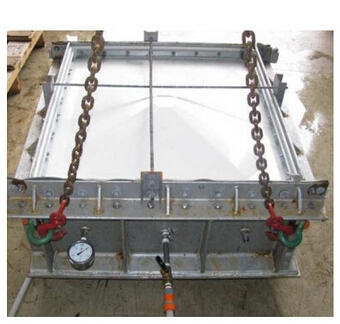

Hydrostatic Test

In accordance with SS245:1995 Specification for glass reinforced polyester sectional water tank.

Tank Pressure:ghp x 6=2.4bar

(9.81x4x1, 000x)/10.5

WATER SUPPLY TANK1

2m High （mm）				2.5m High（mm）				3m High（mm）
Volume M³	L	W	H	Volume M³	L	W	H	Volume M³	L	W	H
4	1000	2000	2000	5	1000	2000	2500	6	1000	2000	3000
8	2000	2000	2000	10	2000	2000	2500	12	2000	2000	3000
12	3000	2000	2000	15	3000	2000	2500	18	3000	2000	3000
16	4000	2000	2000	20	4000	2000	2500	24	4000	2000	3000
20	5000	2000	2000	25	5000	2000	2500	30	5000	2000	3000
18	3000	3000	2000	22.5	3000	3000	2500	27	3000	3000	3000
24	4000	3000	2000	30	4000	3000	2500	36	4000	3000	3000
30	5000	3000	2000	37.5	5000	3000	2500	45	5000	3000	3000
36	6000	3000	2000	45	6000	3000	2500	54	6000	3000	3000
42	7000	3000	2000	52.5	7000	3000	2500	63	7000	3000	3000
32	4000	4000	2000	40	4000	4000	2500	48	4000	4000	3000
40	5000	4000	2000	50	5000	4000	2500	60	5000	4000	3000
48	6000	4000	2000	60	6000	4000	2500	72	6000	4000	3000
56	7000	4000	2000	70	7000	4000	2500	84	7000	4000	3000
64	8000	4000	2000	80	8000	4000	2500	96	8000	4000	3000
72	9000	4000	2000	90	9000	4000	2500	108	9000	4000	3000
50	5000	5000	2000	62.5	5000	5000	2500	75	5000	5000	3000
60	6000	5000	2000	75	6000	5000	2500	90	6000	5000	3000
70	7000	5000	2000	87.5	7000	5000	2500	105	7000	5000	3000
80	8000	5000	2000	100	8000	5000	2500	120	8000	5000	3000
90	9000	5000	2000	112.5	9000	5000	2500	135	9000	5000	3000
100	10000	5000	2000	125	10000	5000	2500	150	10000	5000	3000
120	10000	6000	2000	150	10000	6000	2500	180	10000	6000	3000
140	10000	7000	2000	175	10000	7000	2500	210	10000	7000	3000
160	10000	8000	2000	200	10000	8000	2500	240	10000	8000	3000
180	10000	9000	2000	225	10000	9000	2500	270	10000	9000	3000
200	10000	10000	2000	250	10000	10000	2500	300	10000	10000	3000
Remarks: For table limits, we can’t list all sizes here. we can design and produce as your any size.Our Elevated Water Tank with Size from 1M³ to 5000M³.More questions, please contact us!

product
mmexport11224
New

Elevated Water Tanks supplied by our company are installed more than 130 countries, such as: Russia, Mongolia, North Korea, South Korea, Brunei, Vietnam, Philippines, Panama, Malaysia, Germany, France, Sudan, South Sudan, Botswana, Zambia, Tanzania, Kenya, Nigeria, Guinea, and so on.

Our company consistently adheres to the concept of “customer first, Integrity first, quality first, service first.”

Won international customer’s unanimous praise.

GRP Water Tank1146 We’ve got a really efficient group to deal with inquiries from prospects. Our purpose is “100% customer fulfillment by our product excellent, price & our group service” and enjoy a superb track record amid clientele. With many factories, we can easily deliver a wide selection of Hot-selling HDG Overhead Water Storage Tank Assembled Large Square Modular Panel Price Pressed Steel Elevated Water Tank, We have now a big inventory to fulfill our customer’s calls for and needs.
Hot-selling China Water Storage Tank and Water Container, After years’ creating and developing, with the advantages of trained qualified talents and rich marketing experience, outstanding achievements were gradually made. We get good reputation from the customers due to our good products and solutions quality and fine after-sale service. We sincerely wish to create a more prosperous and flourishing future together with all the friends home and abroad!
