Insulated Water Tank For Hot Water

Short Description:

Insulated water tank water tanks produced by our company are made of high-quality materials.There are many kinds of thermal insulation materials, and the commonly used ones are polyurethane,

Min. Order: 1 Cubic Meter

Size: Customized

Shipping: Support Sea fright

Send email to us

Product Detail

Product Tags

QUICK DETAILS

Place of Origin: Shandong, China	Capacity:1-5000M3
Application:Store all kinds of water	Technique:Molded
Connection:Bolted	Material:Polyurethane/Rubber and plastic
Life Span：15-20 Years	Certificate:ISO:9001
Color:White	Shape:Rectangular / Square

WHAT IS INSULATED WATER TANK?

The thermal insulation water tank produced by our company makes full use of the good thermal insulation effect and bonding properties of polyurethane itself. It is formed by high temperature foaming, which is perfectly combined with various forms of water tanks. The outer corners are reinforced, which is beautiful and durable.

Our company innovatively adopts thin plate bonding, such as color steel plate, stainless steel plate, and aluminum-plastic plate. Compared with the traditional aluminum foil protection, the insulation board using this protective material has a longer life, better effect and more beautiful appearance.

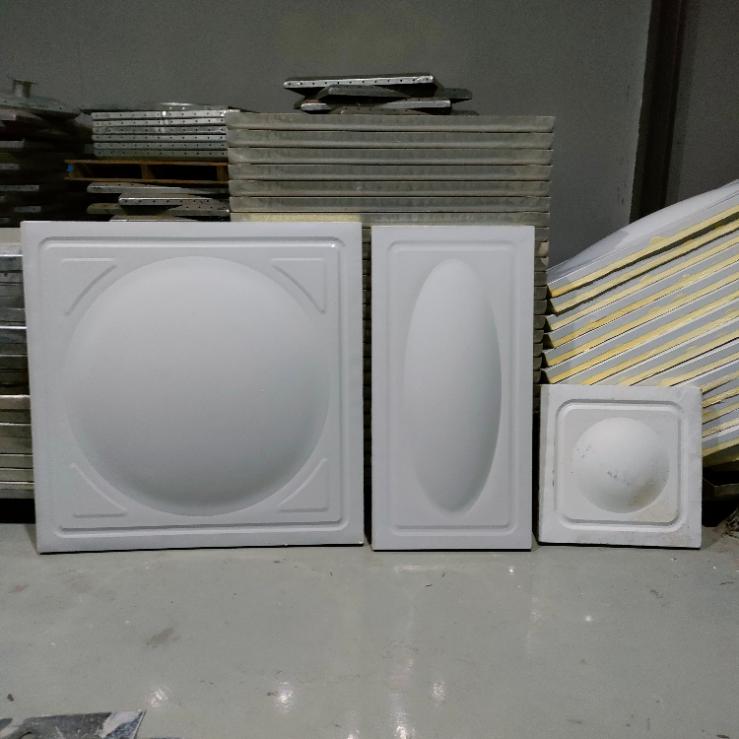

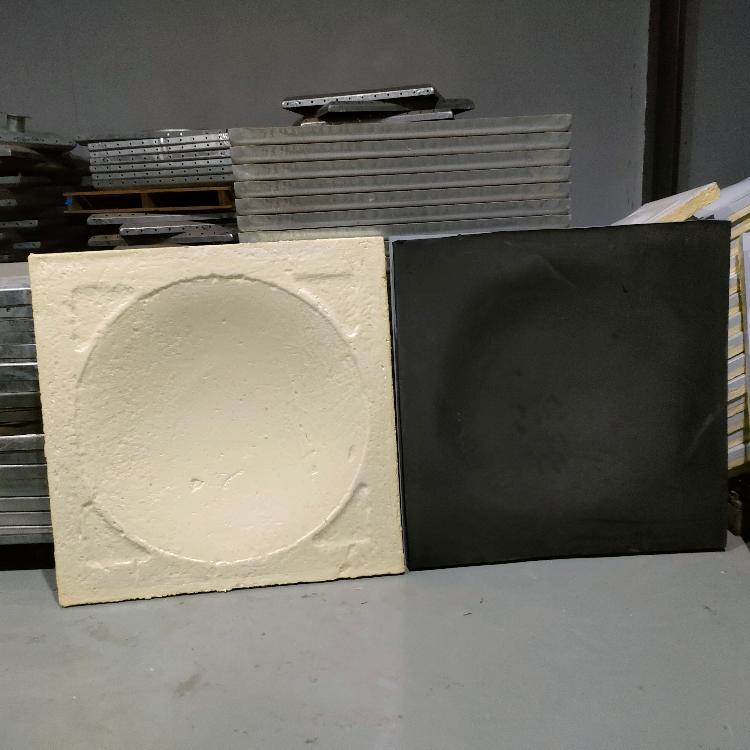

INSULATED WATER TANK SINGLE PANEL SIZE

2000*1000mm, 1500*1000mm, 1000*1000mm, 1000*500mm, 500*500mm.

ADVANTAGE OF INSULATED WATER TANK

● Light weight & High Strength

● No Rust & Strong Corrosion Resistance Performance;

● Food Grade Material & Healthy and Safe;

● Flexible Design & Free Combination;

● Reasonable Price & Considerate Service;

● Easy to transport, install and maintain;

● Health and environmental protection, difficult to grow bacteria;

● Lifetime of Nate GRP water tank is over 25 years with proper maintenance.

SAFETY OF WATER PRESSURE

The water pressure created by filling the tank seals the joints preventing leakage in other type tanks,water pressure can open the joints breaking the seal,and allowing the stored water to leak out.

WIDELY APPLICATIONS

Our FRP Sectional Water Tank widely used in Industry--Mining--Eneterprises--Public institution--Residences--Hotels--Restaurants--Reclainmed water disposal--Fire controlling--Other buildings to serve as the water storage facilities for drinking water/ Sea water/ Irrigation water/ rain water/Firefighting water and other water storage usage.

STRUCTURE OVERVIEW

Using stainless steel & hot dipped galvanized for the interior structure and plated steel for the exterior, the panel exhibits excellent resistance to erosion.

INSULATED WATER TANK SIZE LIST IN NATE

2m High （mm）				2.5m High（mm）				3m High（mm）
Volume M³	L	W	H	Volume M³	L	W	H	Volume M³	L	W	H
4	1000	2000	2000	5	1000	2000	2500	6	1000	2000	3000
8	2000	2000	2000	10	2000	2000	2500	12	2000	2000	3000
12	3000	2000	2000	15	3000	2000	2500	18	3000	2000	3000
16	4000	2000	2000	20	4000	2000	2500	24	4000	2000	3000
20	5000	2000	2000	25	5000	2000	2500	30	5000	2000	3000
18	3000	3000	2000	22.5	3000	3000	2500	27	3000	3000	3000
24	4000	3000	2000	30	4000	3000	2500	36	4000	3000	3000
30	5000	3000	2000	37.5	5000	3000	2500	45	5000	3000	3000
36	6000	3000	2000	45	6000	3000	2500	54	6000	3000	3000
42	7000	3000	2000	52.5	7000	3000	2500	63	7000	3000	3000
32	4000	4000	2000	40	4000	4000	2500	48	4000	4000	3000
40	5000	4000	2000	50	5000	4000	2500	60	5000	4000	3000
48	6000	4000	2000	60	6000	4000	2500	72	6000	4000	3000
56	7000	4000	2000	70	7000	4000	2500	84	7000	4000	3000
64	8000	4000	2000	80	8000	4000	2500	96	8000	4000	3000
72	9000	4000	2000	90	9000	4000	2500	108	9000	4000	3000
50	5000	5000	2000	62.5	5000	5000	2500	75	5000	5000	3000
60	6000	5000	2000	75	6000	5000	2500	90	6000	5000	3000
70	7000	5000	2000	87.5	7000	5000	2500	105	7000	5000	3000
80	8000	5000	2000	100	8000	5000	2500	120	8000	5000	3000
90	9000	5000	2000	112.5	9000	5000	2500	135	9000	5000	3000
100	10000	5000	2000	125	10000	5000	2500	150	10000	5000	3000
120	10000	6000	2000	150	10000	6000	2500	180	10000	6000	3000
140	10000	7000	2000	175	10000	7000	2500	210	10000	7000	3000
160	10000	8000	2000	200	10000	8000	2500	240	10000	8000	3000
180	10000	9000	2000	225	10000	9000	2500	270	10000	9000	3000
200	10000	10000	2000	250	10000	10000	2500	300	10000	10000	3000
Remarks: For table limits,we can't list all sizes here. we can design and produce as your any size.Our Insulated Water Tank with Size from 1M³ to 5000M³.More questions, please contact us!

CONCRETE BASE & STEEL FOUNDATION

Concrete Base (Standard)

* Width: 300mm

* Height:600mm(Include Steel Skid)

* Space: Max 1m

* Outer Dimension: W+400mm

* Horizontal Degree: 1/500

Noted: Our water tank can also be putted on steel tower or steel stand.

CUSTOMERS FEEDBACK

WIDELY USED OF OUR INSULATED WATER TANK

Insulated Water Tanks supplied by our company are installed more than 130 countries, such as: Sri Lanka, Maldives, Israel, Spain, St. Vincent and the Grenadines, Lebanon, Ghana, Ethiopia, South Africa, Zimbabwe, Oman, and so on.

Our company consistently adheres to the concept of "customer first, Integrity first, quality first, service first."

Won international customer's unanimous praise.
